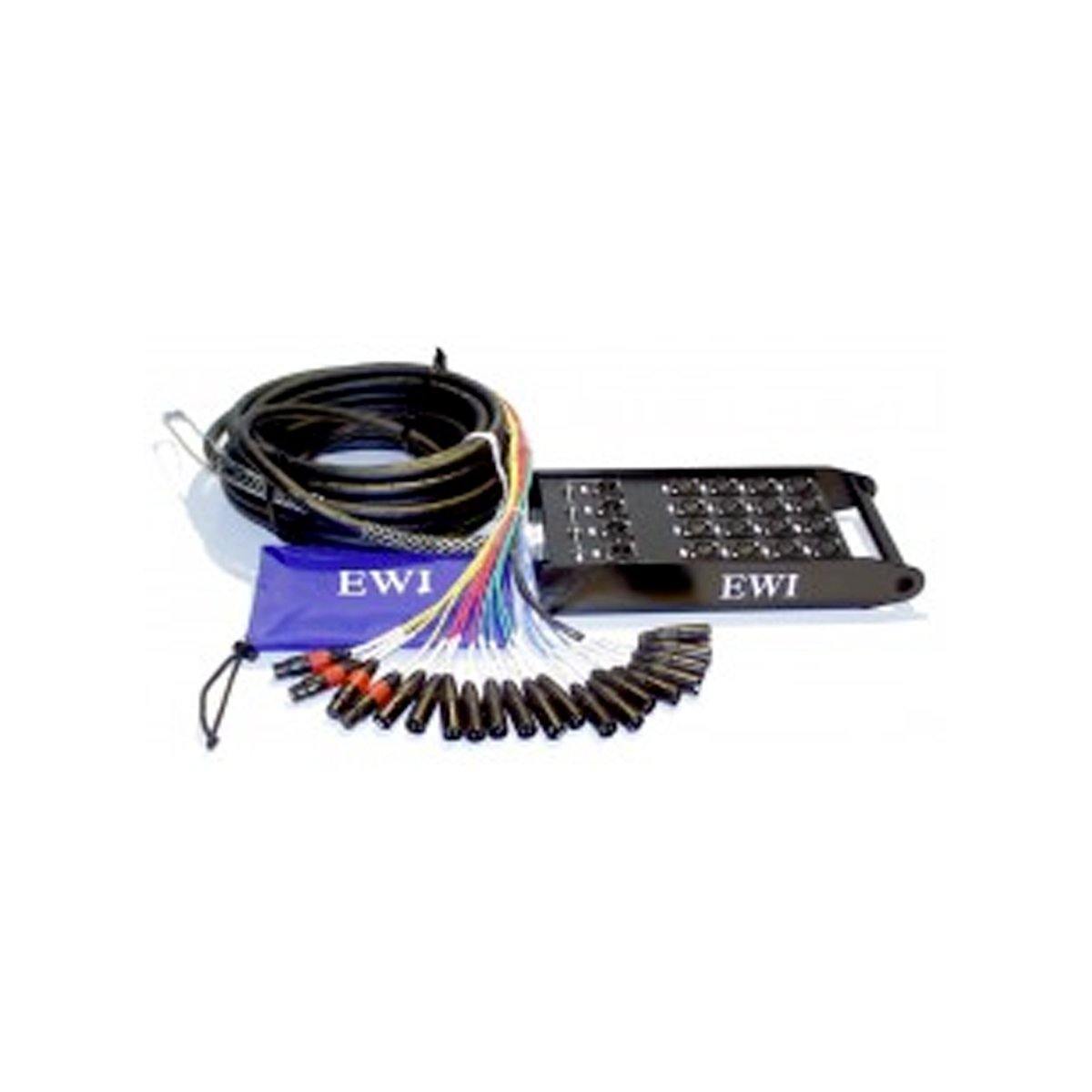

The EWI PSPX-16×4 series snake is a 16 channel XLR send snake with 4 XLR returns.
The returns have parallel MXLR and 1/4″ TRS panel jacks on the stage box.
Our stage box is very heavy duty and well labelled with the fantail also colour coded to groups and very well labelled.
With the EWI PSPX-16-100 Cable the main trunk is constructed with EWI SMC cable which is 20 individual shielded pairs.
22 ga., high copper purity conductors with double aluminium foil shield and trace wire, which is heavy duty, and very flexible.
Strain relief at the stage box and fantail is provided with mesh grip style hanger at the fantail, and rubber compression aluminium cable clamp at the stage box.
Panel jacks are the button-less “spring loaded” style with composite (non-metallic) bodies and the fantail is constructed with EWI ES3FB-GDP (FXLR) and ES3MB-GDP (MXLR) black shell, gold contact point connectors.
This is a quality built snake suitable for professional applications and it even comes with a nifty blue bag to protect the fantail when not in use.
